SW41H21A-EO: 4x1 HDMI2.1 SWITCH SONOSARC/eARC

8K@60Hz HDMI 2.1 Switch 4 in 1 Out with Audio Extractor ARC

SW41H21A-EO: 4x1 HDMI2.1 SWITCH SONOSARC/eARC

Supports HDMI2.1 4K@120Hz4:4:4 8bitHDR,HDCP 2.3
Supports Dolby Vision,VRR,ALLM,Dolby Atmos.

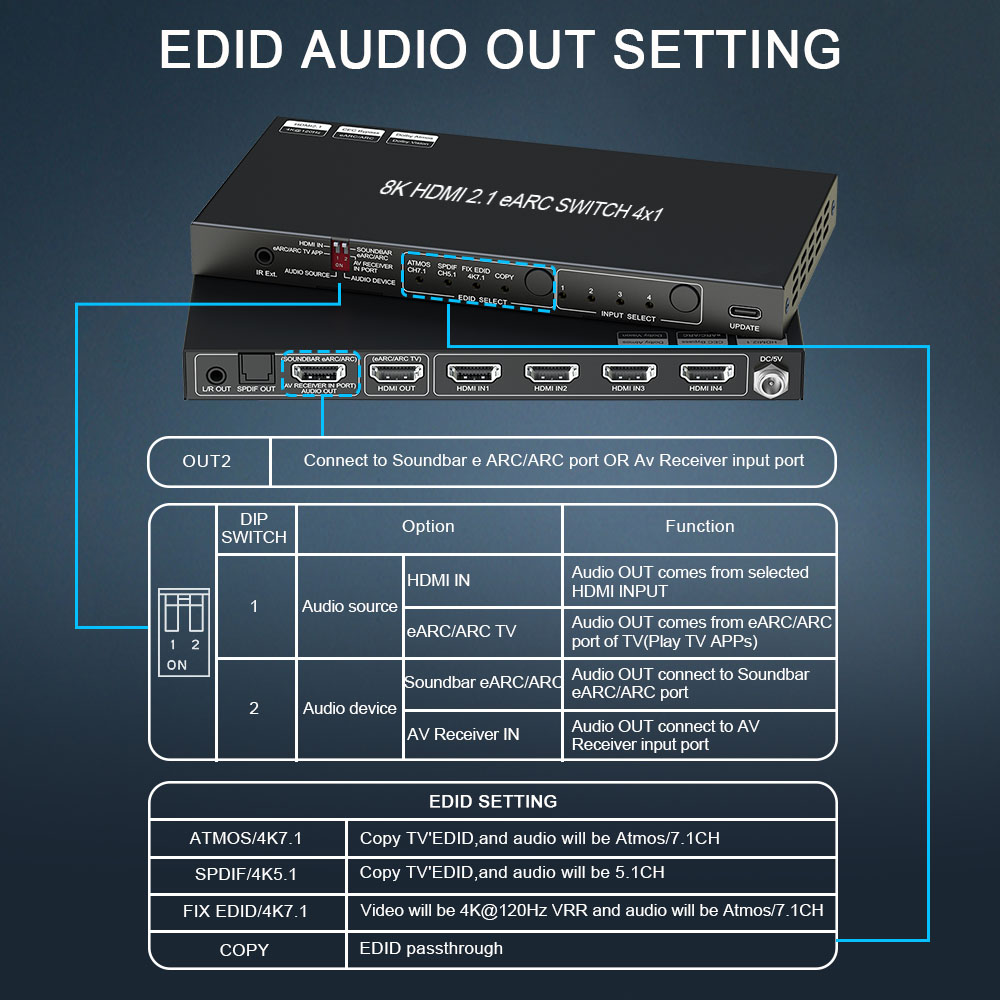

Supports EDlD copy, multiple EDlD setting for compatibility.
HDMI OUT1 Support CEC ('AUDIO SOURCE(DIP1)'MUST SET TO'HDMI IN')
HDMI OUT1 SuppOrt TV eARC/ARC ('AUDIO SOURCE(DIP1)'MUST SET TOeARC/ARC TV APP').

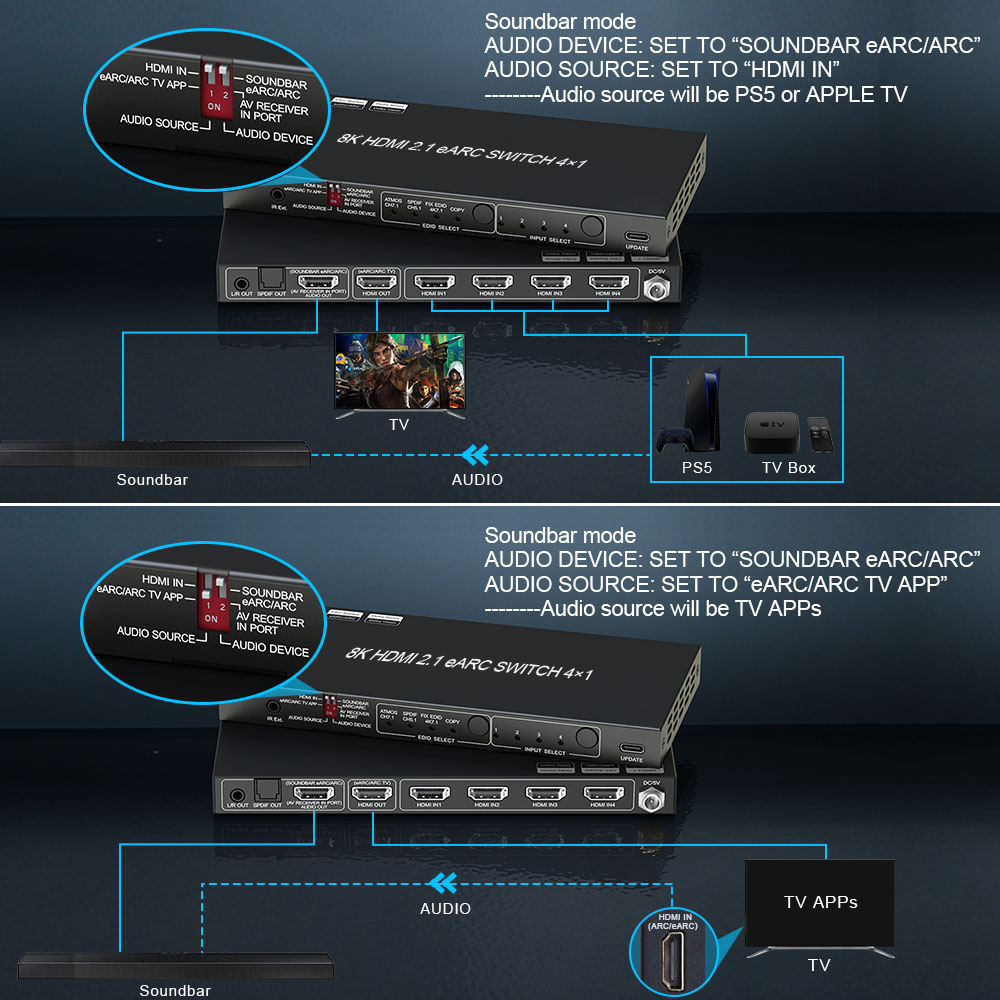

HDMI OUT2 support soundbar eARC/ARC ('AUDIO DEVICE(DIP2)'MUST SETTO'soundbar eARC/ARC')
HDMI OUT2 support AV receiver('AUDIO DEVICE(DIP2)' MUST SET TO'AVRECEIVER IN PORT')

inquiry

Description

OVERVIEW

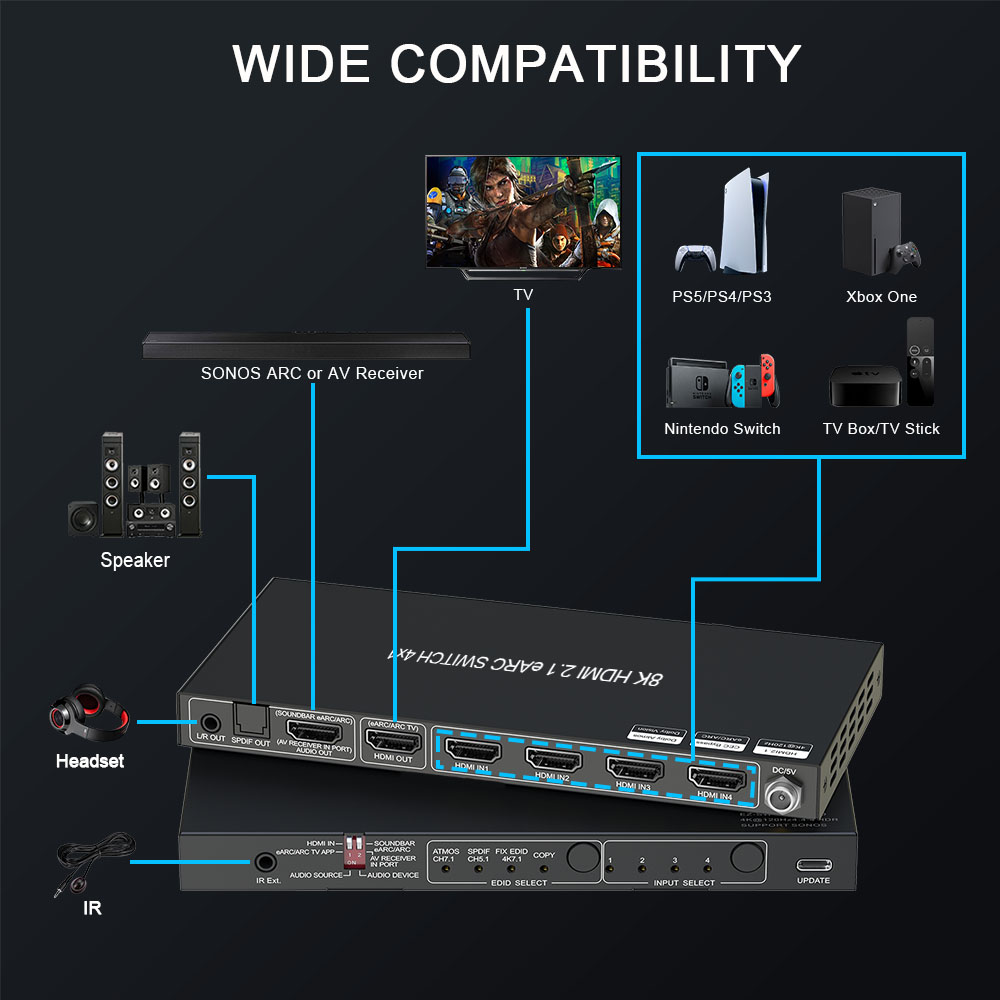

SW41H21A-EO is a 4x1 HDMl2.1 switch with Ultra HD4K@120Hz support.lt supports HDMl 2.1 specificationfeatures including data rates up to 4K@120Hz 4:4:4 8bit,VRR, ALLM, HDR and HDCP2.3, Deep Color, 3D, Lip Syncand HD lossless Audio NVideo formats. And Audio DE-embed,Optical Audio out without TV connected. And the productcan use for SONOS ARC/eARC ,ORTVARC/eARC,ORHDMI2.1/HDMI2.0 AV receiver.

SPECIFICATIONS

HDMI vertion	HDMI 2.1	HDCP version	HDCP 2.3
HDMI resolution	4K*2K/1080p/1080i/720p1576p/576i/480p/480i	Video format	24bit/30bit/36bit
Audio format	Dolby true HD/DTS-HD/DTS5.1/Dolby AC3/DSD	Input/Output TMDS signal	0.5~1.5Volts p-p(TTL)
Power adapter format	Input AC 100V-240V/50HZ.60HZ;Output: USB 5V/2A	Dimension(LxWxH)	17683.416.5(mm)
