FEATURES

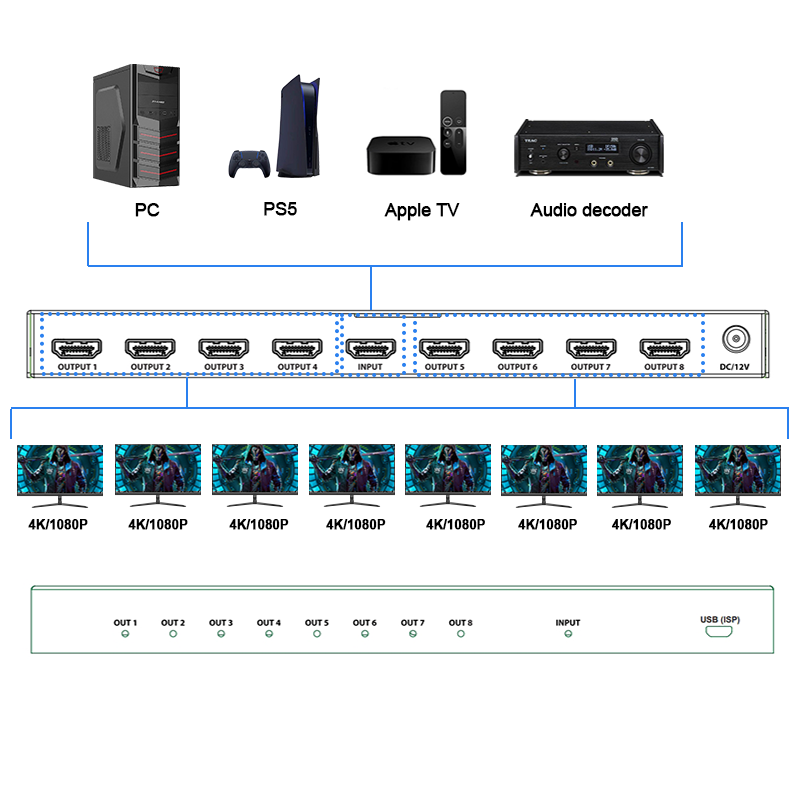

Distributes one HDMl source signal to eight HDMl displays. ltsupports 4K and 1080P output simultaneously.
Support HDMI 2.0 4K@60Hz 4:4:4 8bit HDR and HDCP 2.2
Support HDMl output down scaler to 1080p, Dlp switch setting for each output.
Support EDID copy from HDMl output 1 device.
Support 3D, Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xVYCC
HDMl ports support Dolby Digital/DTS-HD Master Audio/Dolby.AC3/DSD/LPCM/PCM 2.1/5.1/7.1CH Audio, DTS:X, Atoms
Support HDMl signal re-timing, never lose quality
Support HDMl input up to 15 metres AWG26 HDMl 2.0 standard cable length, output up to 25metres AWG24 cable length Plug and Play;
No driver required; installs in minutes
Note:Scaler output don't support YUV4:2:2 signal. lf thesource is 4K@60 4:2:2,the LED will flash, and stream out 4K picture.
SPECIFICATIONS
| HDMl version | HDMI 2.0 | HDCP version | HDCP2.2 |
| HDMl resolution | 4K*2K/1080p/1080i/720p/576p/576i/480p/480i | Support video color format | 24bit/30bit,36bit |
| Support audio format | Dolby true HD/DTS-HD/LPCM7.1/DolbyAC3/DSD/LPCM/PCM 2.1/5.1/7.1CH Audio, DTs:X, Atoms | Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDc signal | 5Volts p-p (TTL) | Input cable distance | ≤15m AWG26; HDMI 2.0 standard cable |
| Output cable distance | ≤25m AWG26; HDMl 2.0 standard cable | Max working current | 200mA |
| Power adapter format | Input AC 100V-240V/ 50HZ,60HZ;Output: DC5V/2A | Operating Temperature range | -15 to +55C |
| Dimension(LxWxH) | 102*73*17.5(mm) | Weight | 180g |
