FEATURES

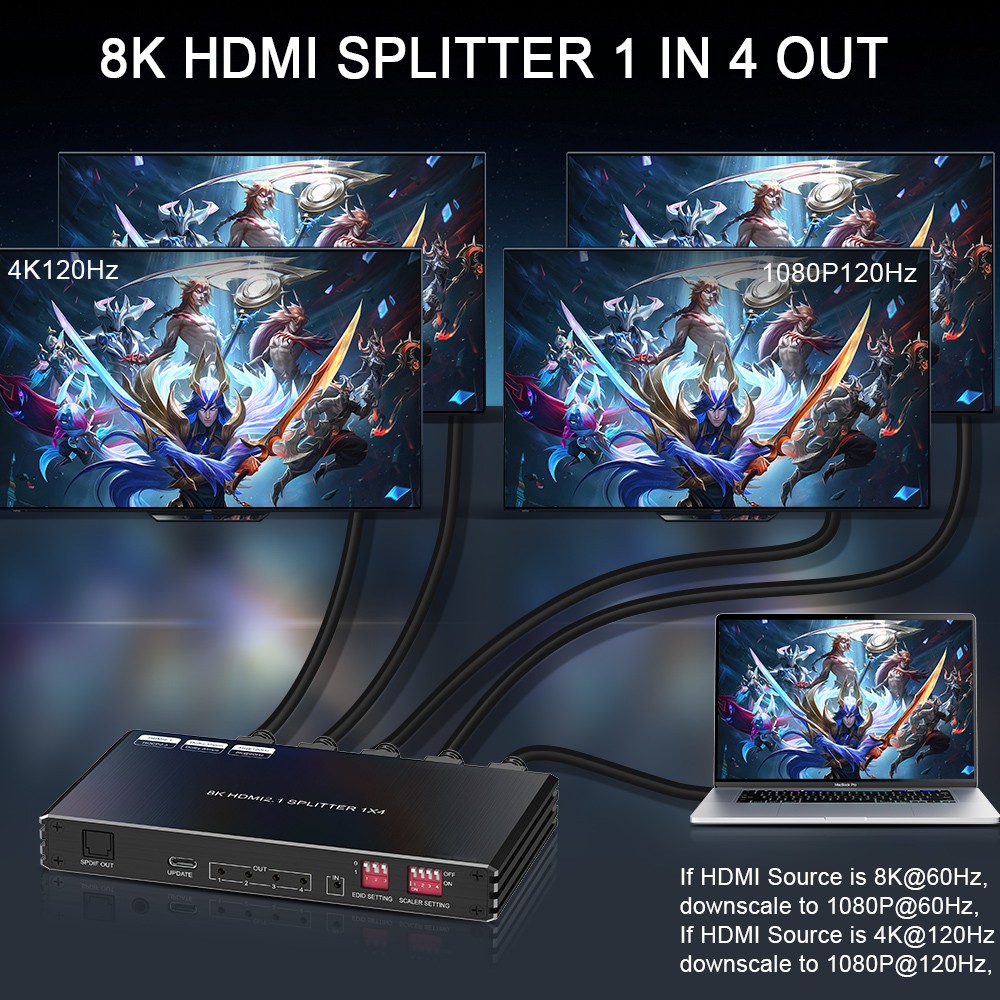

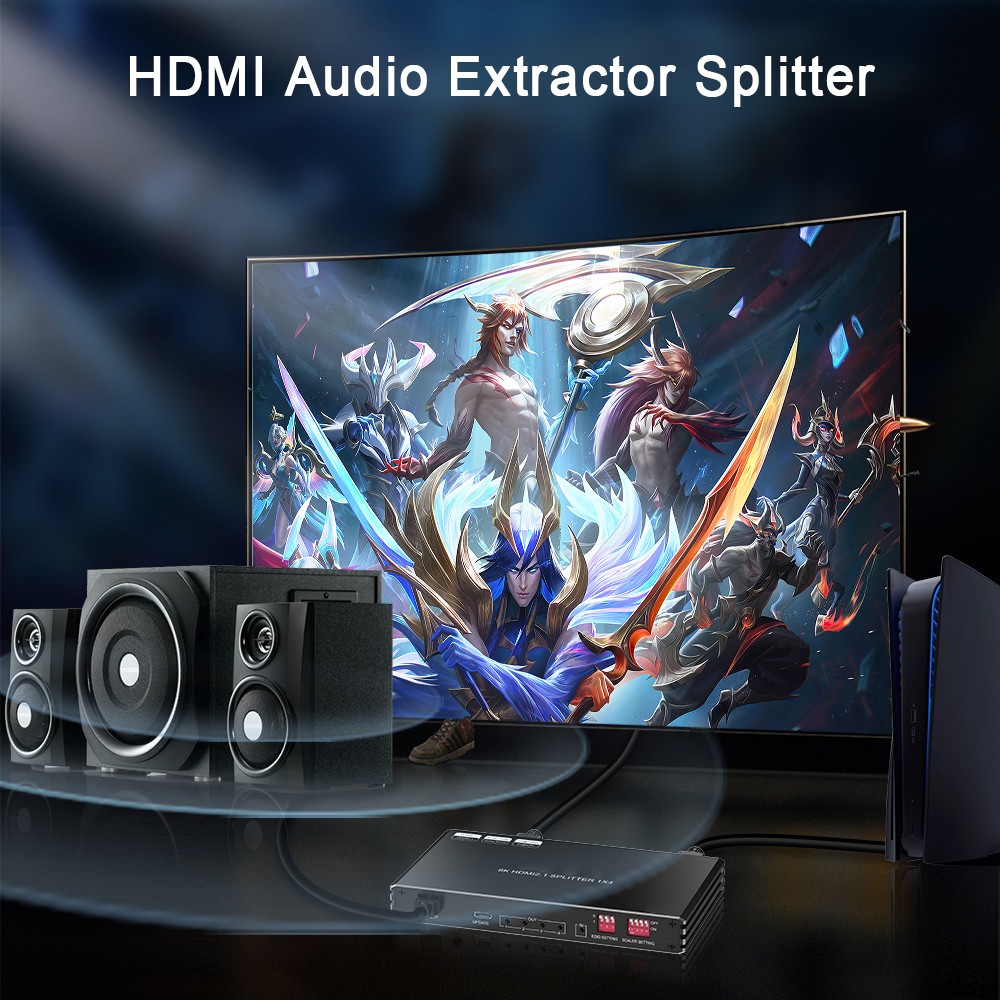

Distributes one HDMl source signal to four HDMl displays. It supports 4K and 1080P output simultaneously
Support HDMI 2.1 8K@60Hz,4K@120Hz,Dolby vision andHDCP 2.3
Support VRR, ALLM

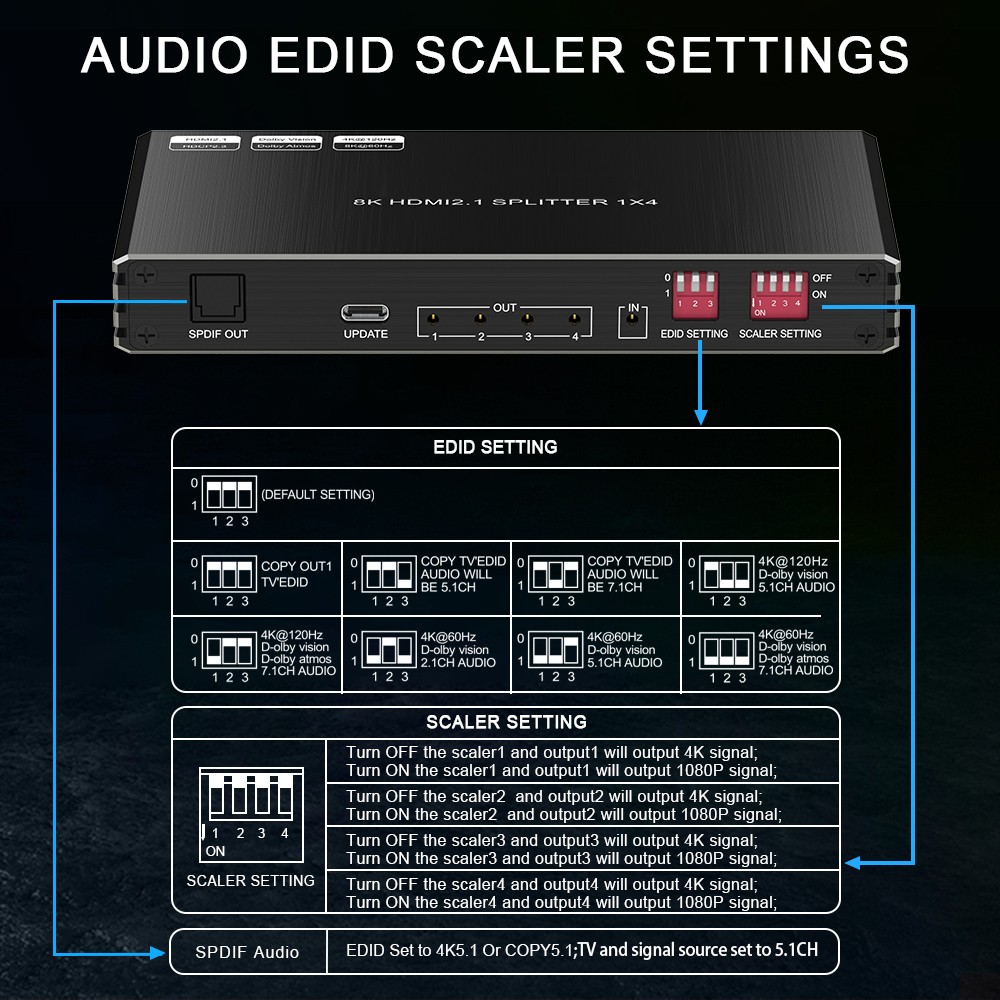

Support EDlD manager
Support 3D,Support deep color 30bit,36bit.Support Blue-Ray 24/50/60fs/HD-DVDIxVYCC
Support Dolby Atmos Audio
Support HDMl signal re-timing,never lose quality
Plug and Play; No driver required; installs in minutes
Specifications
| HDMl vertion | HDMI 2.1 | HDCP version | HDCP 2.3 |
| HDMI resolution | 4K*2K/1080p/1080i720p1576p/576i/480p/480i | Video format | 24bit/30bit/36bit |
| Audio format | Dolby true HD/DTS-HD/DTS5.1/DoIbyAC3/DSD | Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Max working current | 2A | Input/Output DDC signal | 5Volts p-P (TTL) |
| operating Humidity range | 5 to 90%RH | Power adapter fommat | Input AC 100V-240V/50HZ.60HZ;Output: 5V2A |
| Dimension(LxWVxH) | 150*83.3*20(mm) | Weight | 220g |
