FEATURES

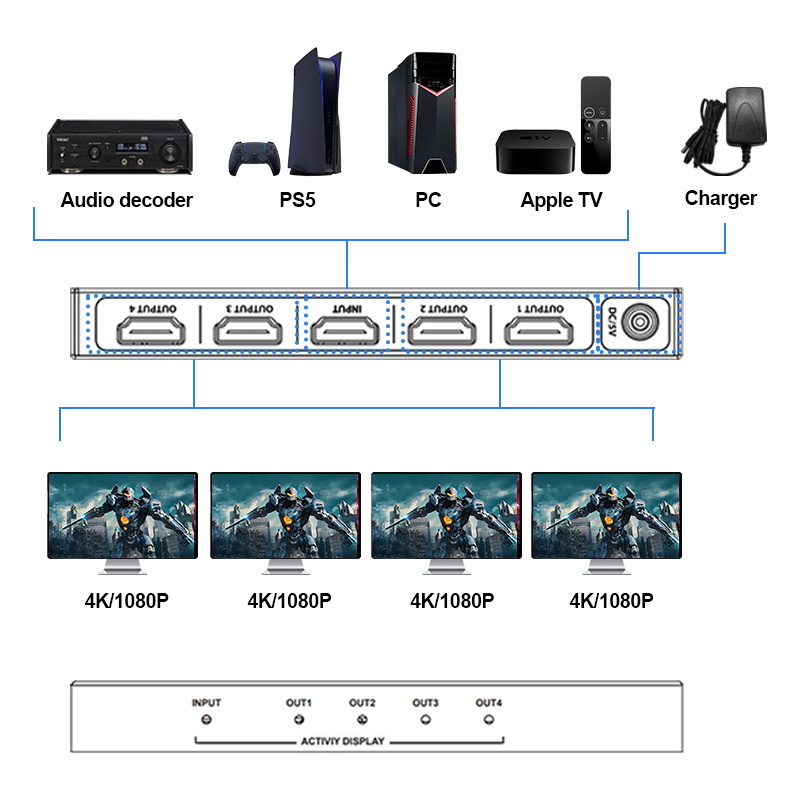

Distributes one HDMl source signal to four HDMl displays. it supports 4K and 1080P output simultaneously.
Support HDMI 2.0 4K@60Hz 4:4:4 8bit HDR and HDCP 2.2
Support HDMl output down scaler to 1080p
Support EDlD copy, detect the first HDMl output display device.
Support 3D, Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xVYCCDolby
Digital Audio format, HDMl ports support Dolby Digital 7.1CHAudio; SPDlF Optical Audio supports Dolby Digital/DTS-HD MasterAudio/DoIby-AC3/DSD/LPCM/PCM 2.1/5.1CH Audio.
Support HDMl signal re-timing, never lose quality
Support HDMl input up to 15metres AWG26 HDMl 2.0 standard cable length, output up to 25metres AWG24 cable length Plug and Play;
No driver required; Installs in minutes
Note: Scaler output don't support YUV4:2:2 signal. lf the source is 4K@60 4:2:2,the LED will flash, and stream out 4K picture.
SPECIFICATIONS
| HDMl version | HDMI 2.0 | HDCP version | HDCP 2.2 |
| HDMl resolution | 4K*2K/1080p/1080i/720p/576p/576i/480p/480i | Support video color format | 24bit/30bit,36bit |
| Support audio format | Dolby true HD/DTS-HD/LPCM7.1/DolbyAC3/DSD | Max bandwidth | 600MHz |
| Max baud rate | 18Gbps | Input/Output TMDs signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDc signal | 5Volts p-p (TTL) | Input cable distance | ≤15m AWG26; HDMl 2.0 standard cable |
| Output cable distance | ≤25m AWG26; HDMl 2.0 standard cable | Power adapter format | Input AC 100V-240V/ 50HZ,60HZ; Output: DC5V/2A |
| Operating Temperature range | -15 to +55℃ | Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension(LxWxH) | 145*81*16.8(mm) | Weight | 500G |
