FEATURES

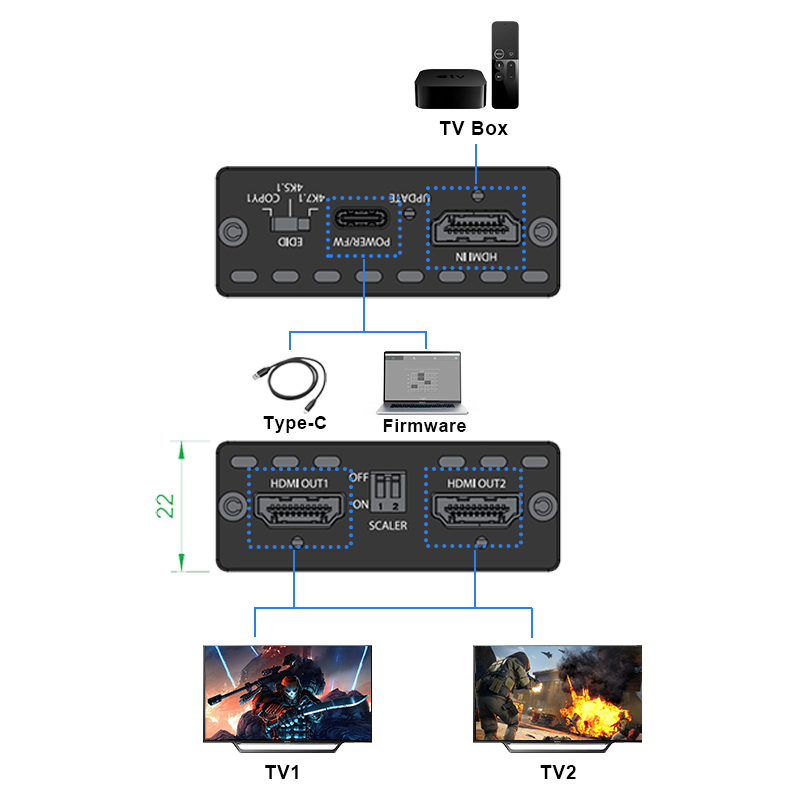

Distributes one HDMl source signal to two HDMl displays. It supports 4K and 1080P output simultaneously.
Support HDMI2.0 4K@60Hz 4:4:4 8bit HDR and HDCP 2.2
Support both HDMl outputs down scaler to 1080p.
Support EDlD management,4K/1080P/learning from OUTPUT 1.
Support 3D, Support deep color 30bit,36bit.
Support Blue-Ray 24/50/60fs/HD-DVDIxvYCC
Dolby Digital Audio format, HDMl ports support Dolby Digital 7.1CH Audio.
SPECIFICATIONS
| HDMl vertion | HDMI 2.0 | HDCP version | HDCP 2.2 |
| HDMI resolution | 4K*2K/1080p/1080i720p1576p/576i/480p/480i | Video format | 24bit/30bit/36bit |
| Audio format | Dolby true HD/DTS-HD/DTS5.1/DoIbyAC3/DSD | Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Max working current | 2A | Input/Output DDC signal | 5Volts p-P (TTL) |
| operating Humidity range | 5 to 90%RH | Power adapter fommat | Input AC 100V-240V/50HZ.60HZ;Output: 5V2A |
| Dimension(LxWVxH) | 58*52.8*22(mm) | Weight | 180g |
