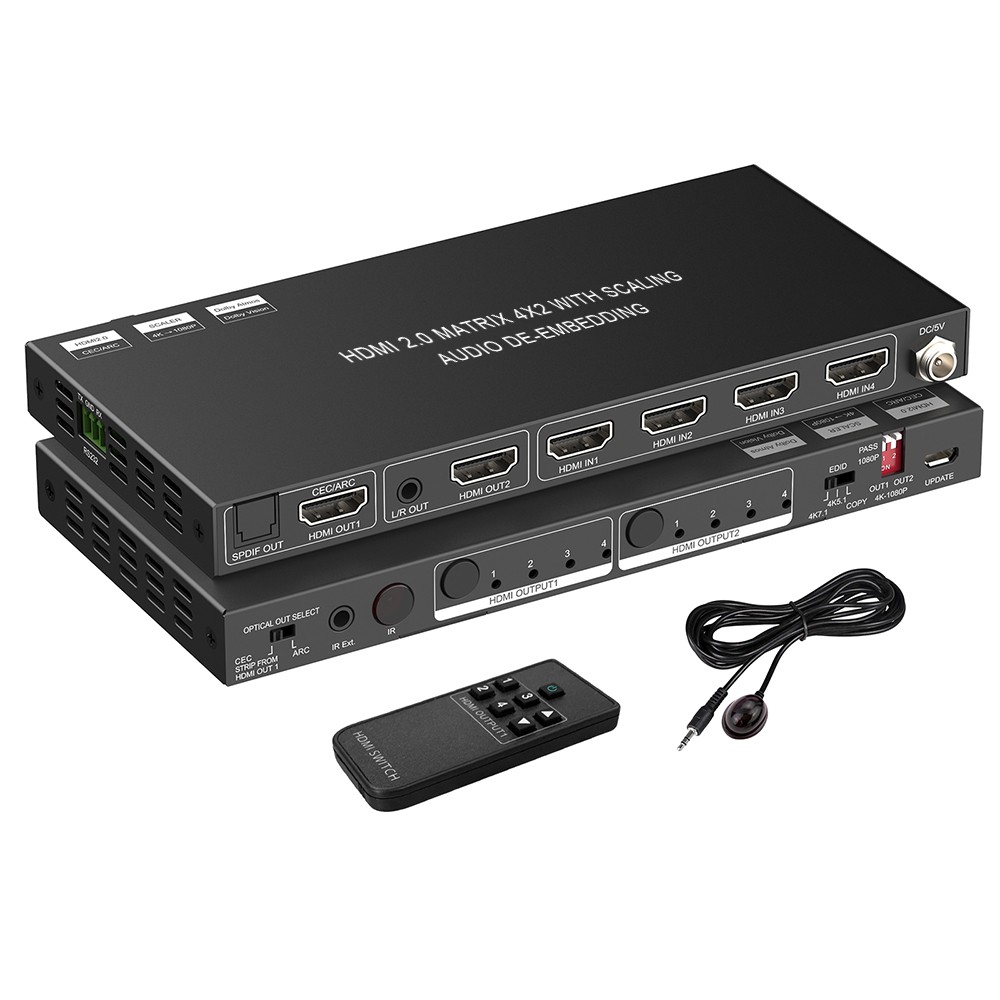

MX42HA-ARC:HDMI2.0 Matrix 4x2 ARC

HDMI Matrix Switch 4 input 2 output ARC CEC 4K 60Hz with SPDIF,Stereo L/R 3.5mm audio extractor, HDMI Down-scaler 4K source to 1080p TV, EDID mode 4K 7.1, 4K 5.1, COPY for easy set up -- High Stable Performance for high-fidelity gaming, home entertainment. High Compatible with Fire TV, Roku, Apple TV, PS4 Pro, PS5, chromecast tv, Android TV Box S905, mac macbook, HDMI LED Box, Backlight Light neo sync -- Pls use new HDMI2.0 AWG26 cable less than 3 meter.

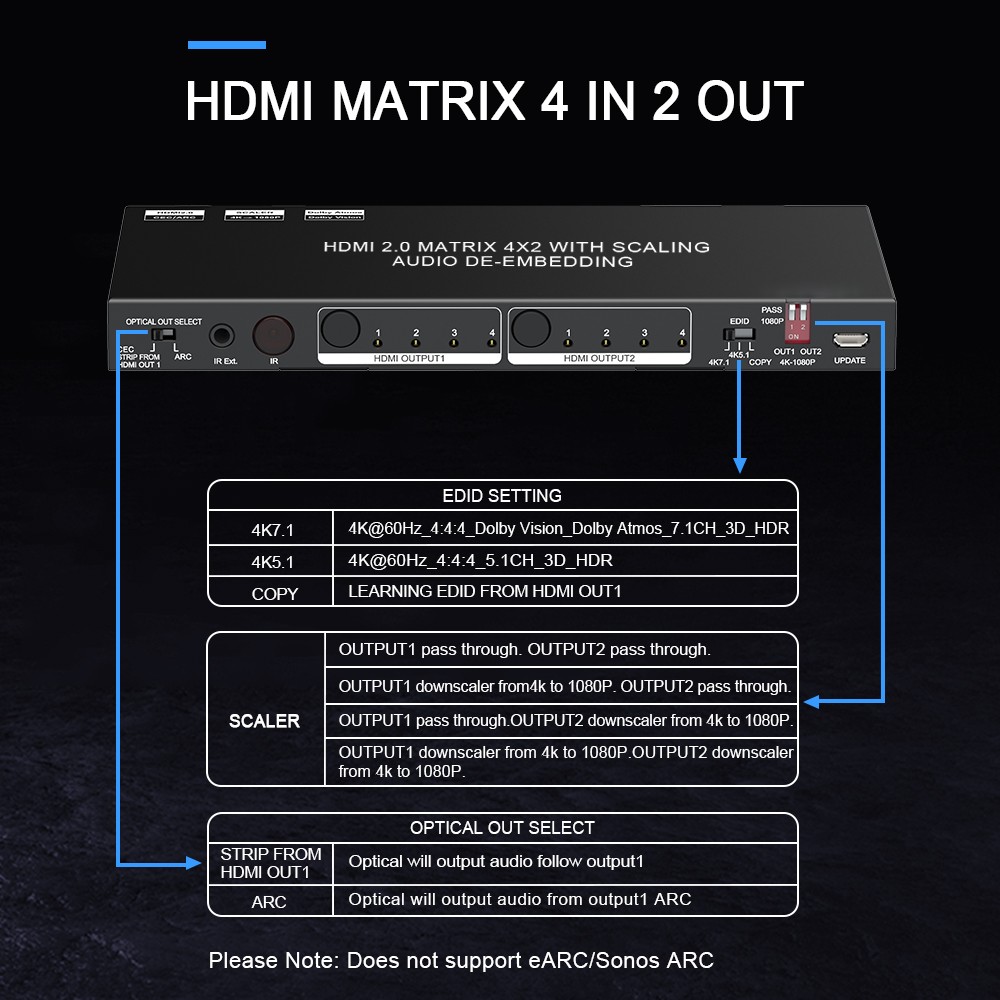

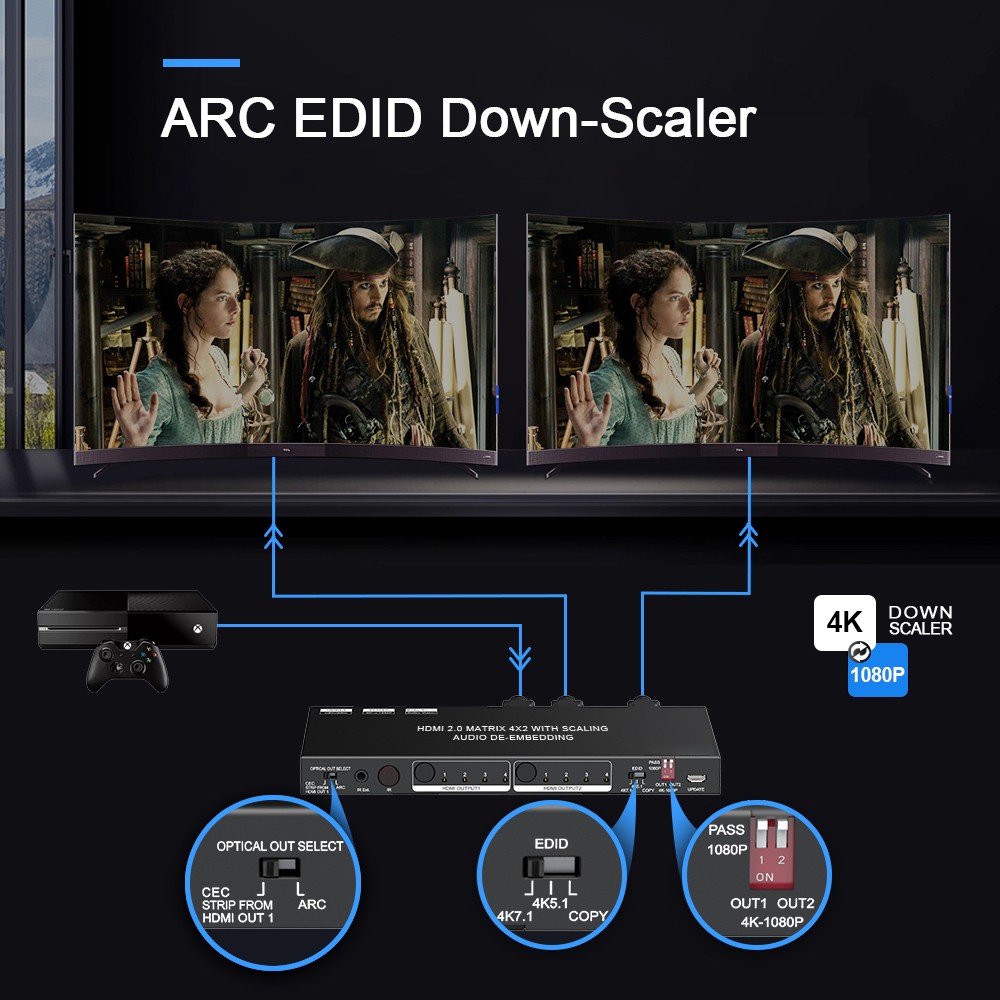

【ARC CEC】 Support ARC TV, ARC soundbar via SPDIF port. Not for Sonos ARC -- OUT 1 support ARC CEC only. ARC CEC is ALTERNATIVE. Pls check ARC CEC picture well -- EDID 4K 7.1ch, 4K 5.1ch, COPY mode toggle switch for easy set up-- Two outputs can Down-scale 4K source to 1080p 60Hz TV ONLY together or separately. NOT down-scale 4K HDR D-o-l-b-y Vision (4K60Hz 4:2:2), VRR. --Support 4K & 1080p TV work in sync, D-o-l-b-y Atmos soundbar, D-o-l-b-y Vision TV work in sync.

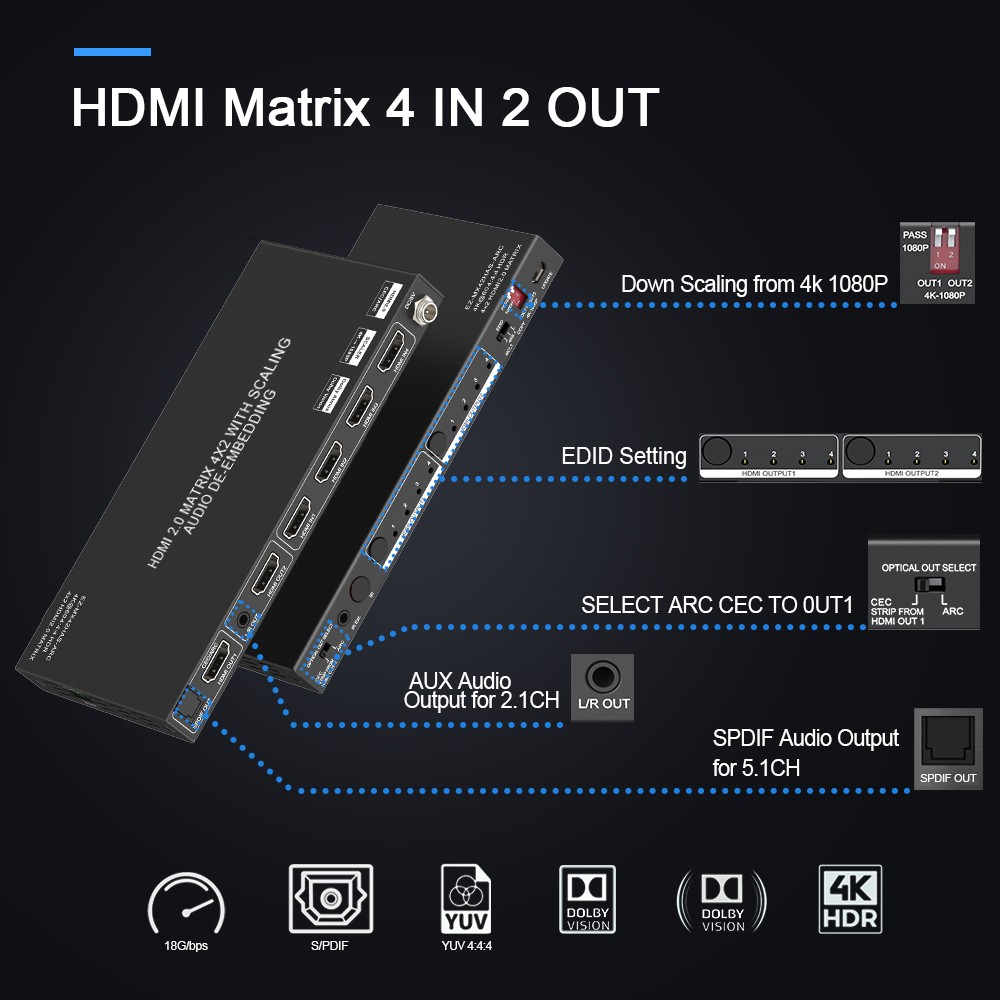

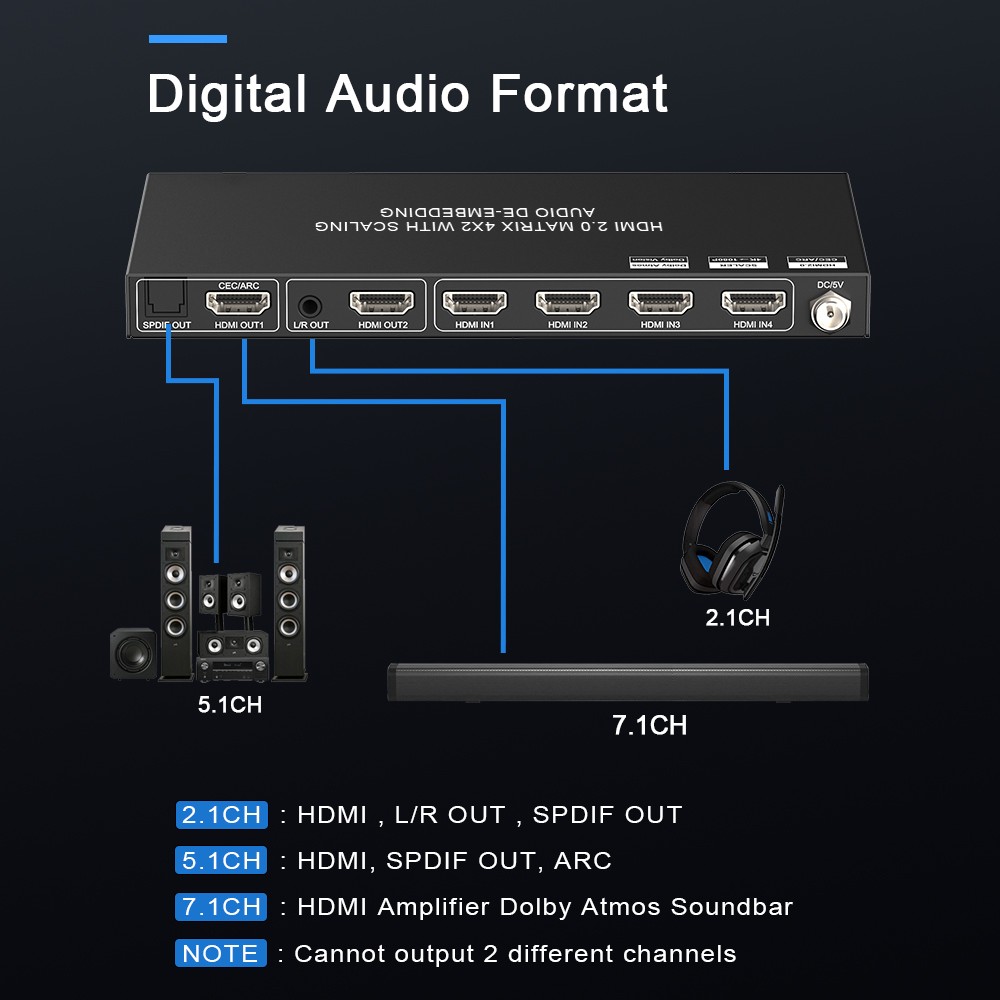

【AUDIO VIDEO】 HDMI Matrix Switch 4x2 support HDCP2.2 HDMI2.0 4K 60Hz YUV 4:4:4 18Gbps 8bit HDR D-o-l-b-y Vision, HDCP Bypass strip, 1080p @ 144Hz/ 120Hz/ 60Hz 3D, 3840x2160 @60Hz, 3440x1440 @ 60Hz, 1440p@ 120Hz/ 60Hz --HDMI audio Digital 7.1CH, D-o-l-b-y Atmos, DTS:X. De-embed SPDIF Optical 5.1CH follows up HDMI OUT 1. Stereo 2.1CH audio for headset earphone. NOT support ATMOS 7.1 & 5.1 audio work in sync. It is not audio down mixer.

【ATTENTION PLS】 Plug and Play. Pls use new HDMI2.0 AWG26 cable less than 3 meter. It's simple device, just needs to be hooked up correctly -- IR remote IR Extension Cable. Pls remove battery shield in IR remote firstly. NOT extend screen, matrix COPY mirror duplicate monitor.

【HIGH COMPATIBILITY 】 HDMI four input two output switcher matrix support G-Sync,N-v-idia Shield,X-f-i-nity box, 4K60 MK 2 Game Video Capture, XBox series, OSSC, Roku Express 4K+ Ultra Streaming Stick+, 4K camera etc. 4K IMAX HDMI bypass HDCP strip for IMAX DIGITAL 2K-4K. 1~3 sec Fast Input Switching.
