FEATURES

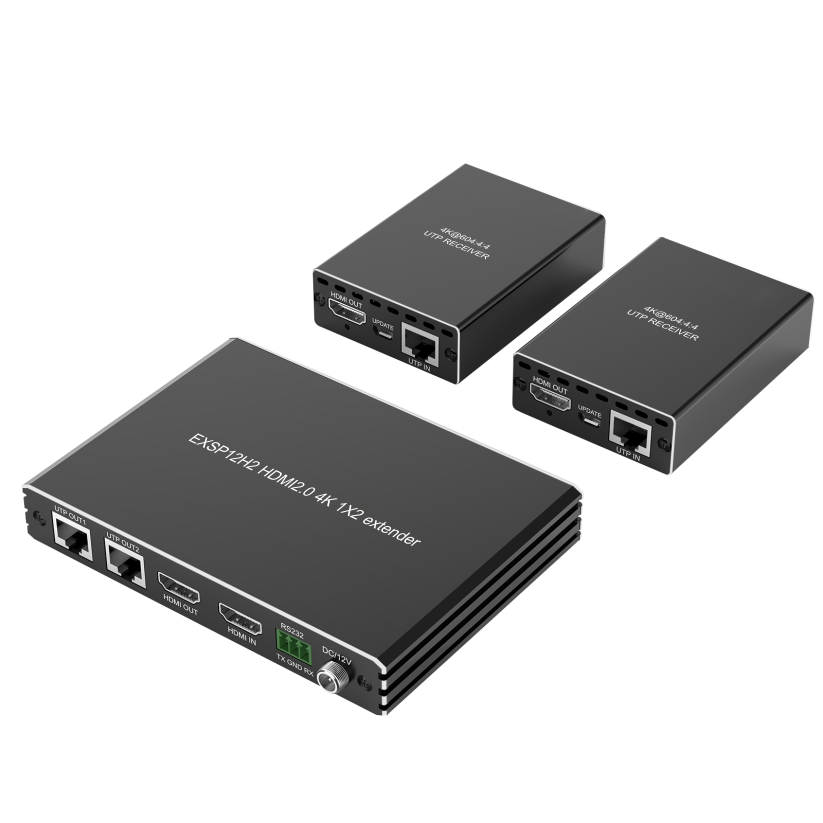

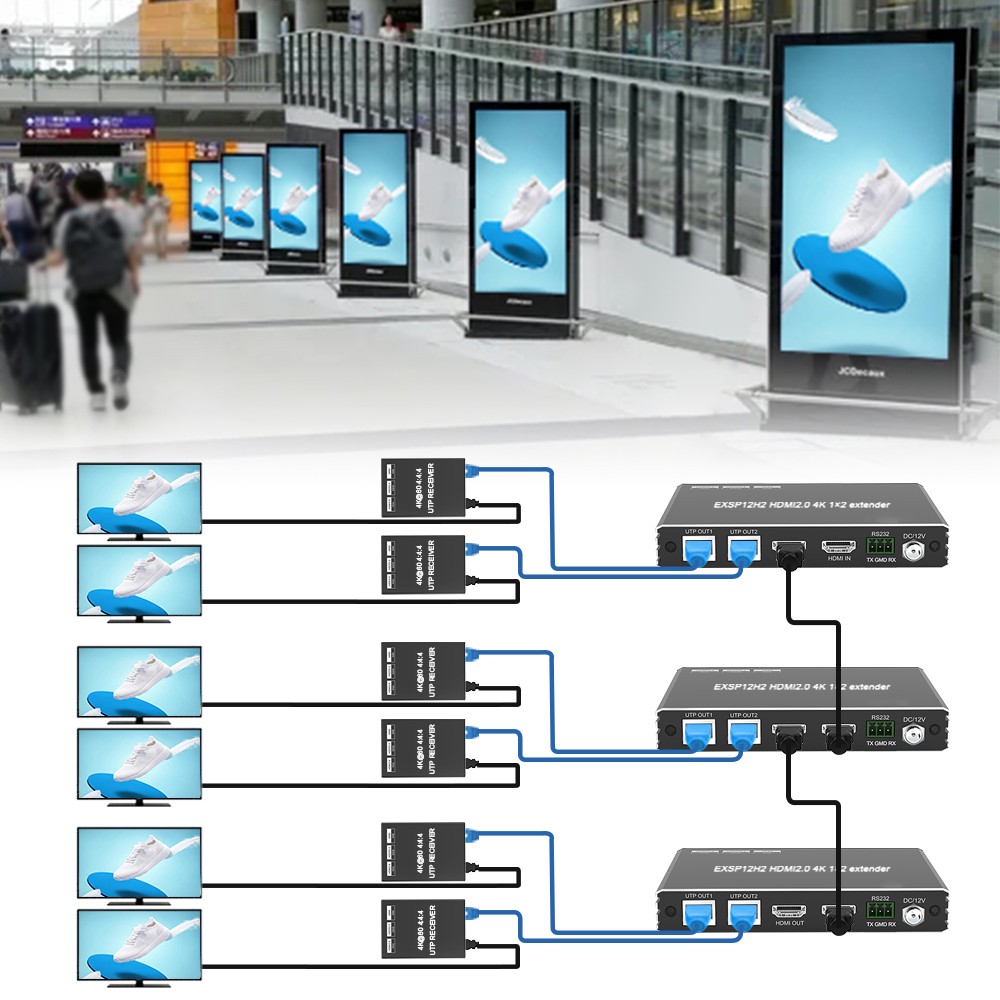

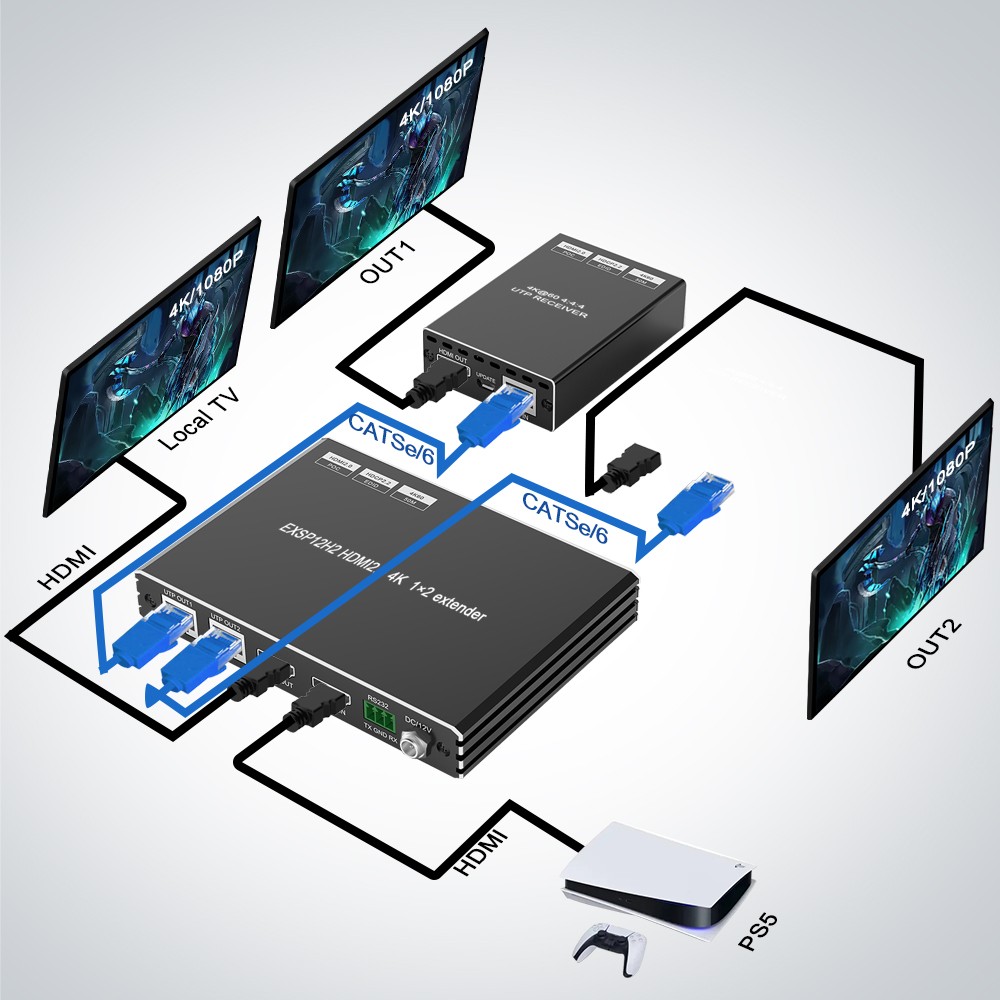

Two UTP output extend UHD HDMI signal to remote HDMI display
up to 165ft/50m.
Supports HDMI 2.0 4K@60Hz 4:4:4 8bit,HDCP 2.2

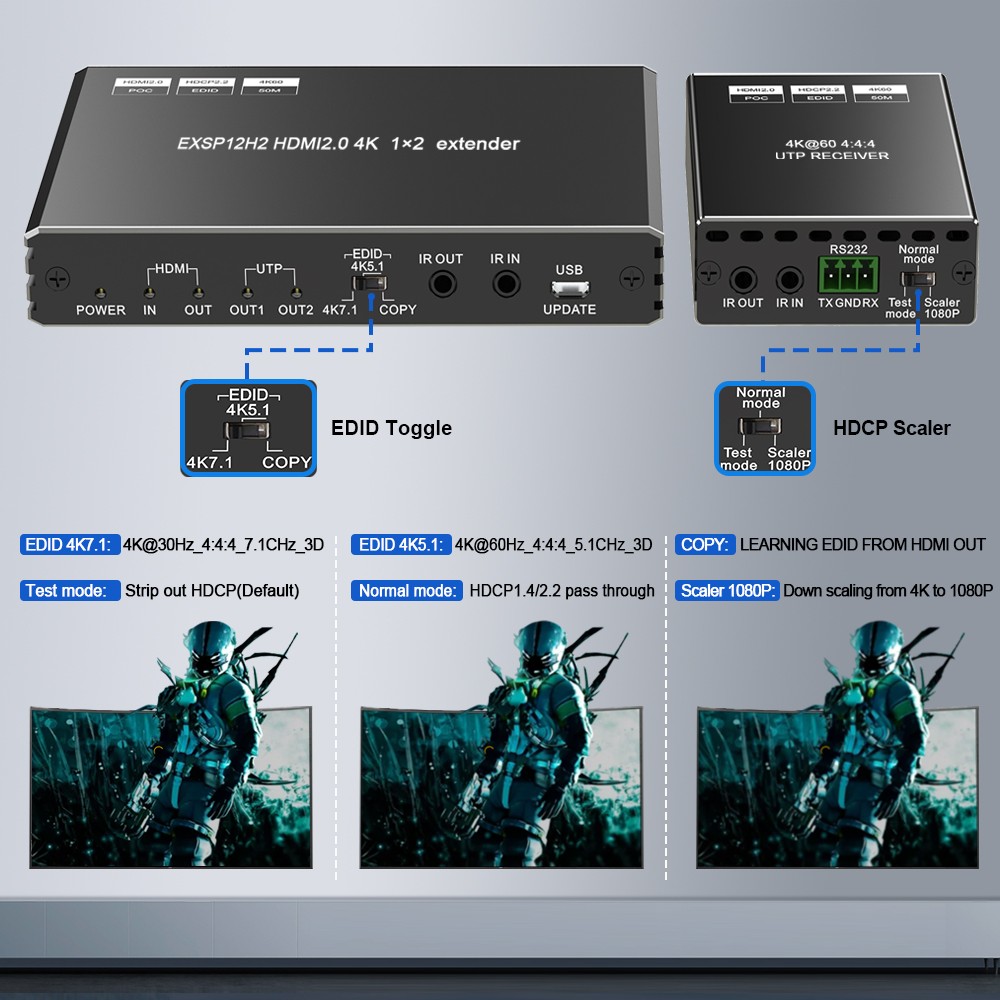

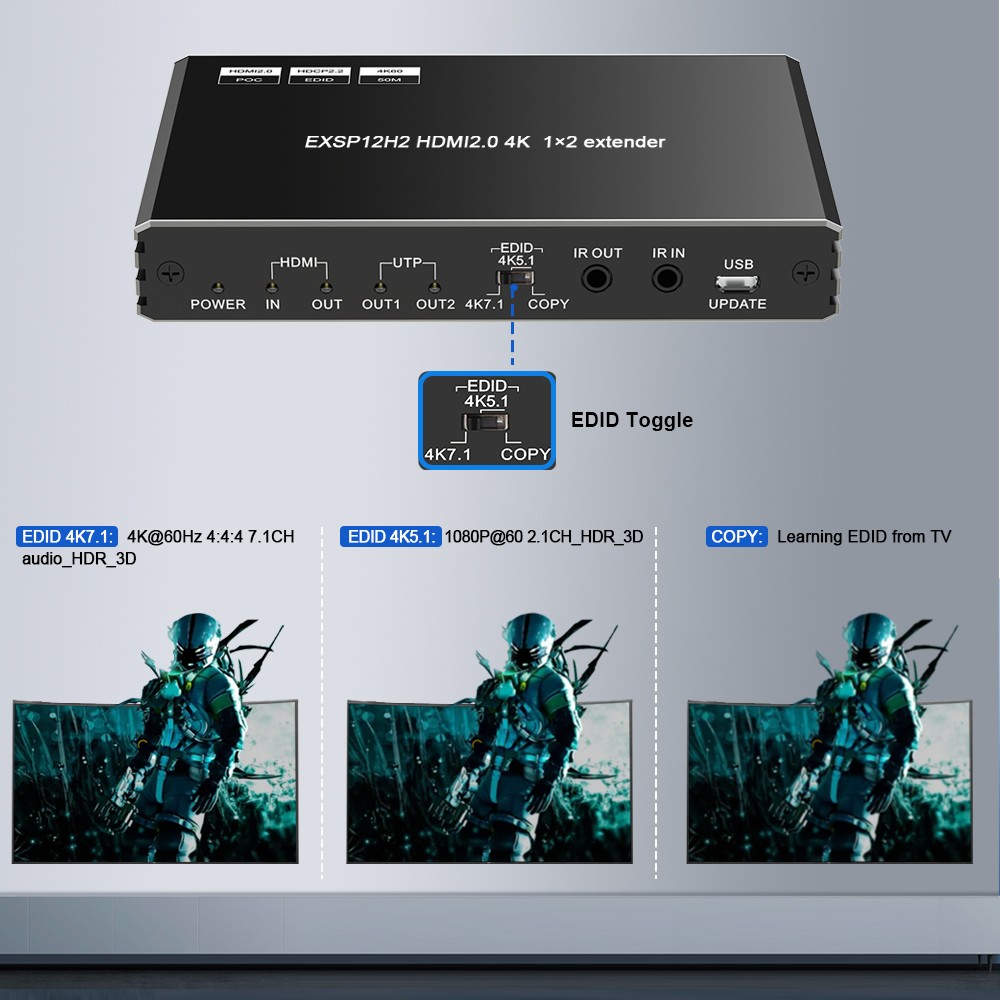

EDID management.
Supports HDMI 4K@60Hz 4:4:4 8bit, up to 165ft/50m.
Support 3D, Support deep color 30bit, 36bit
Supports Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Supports HDMI signal re-timing, never lose quality

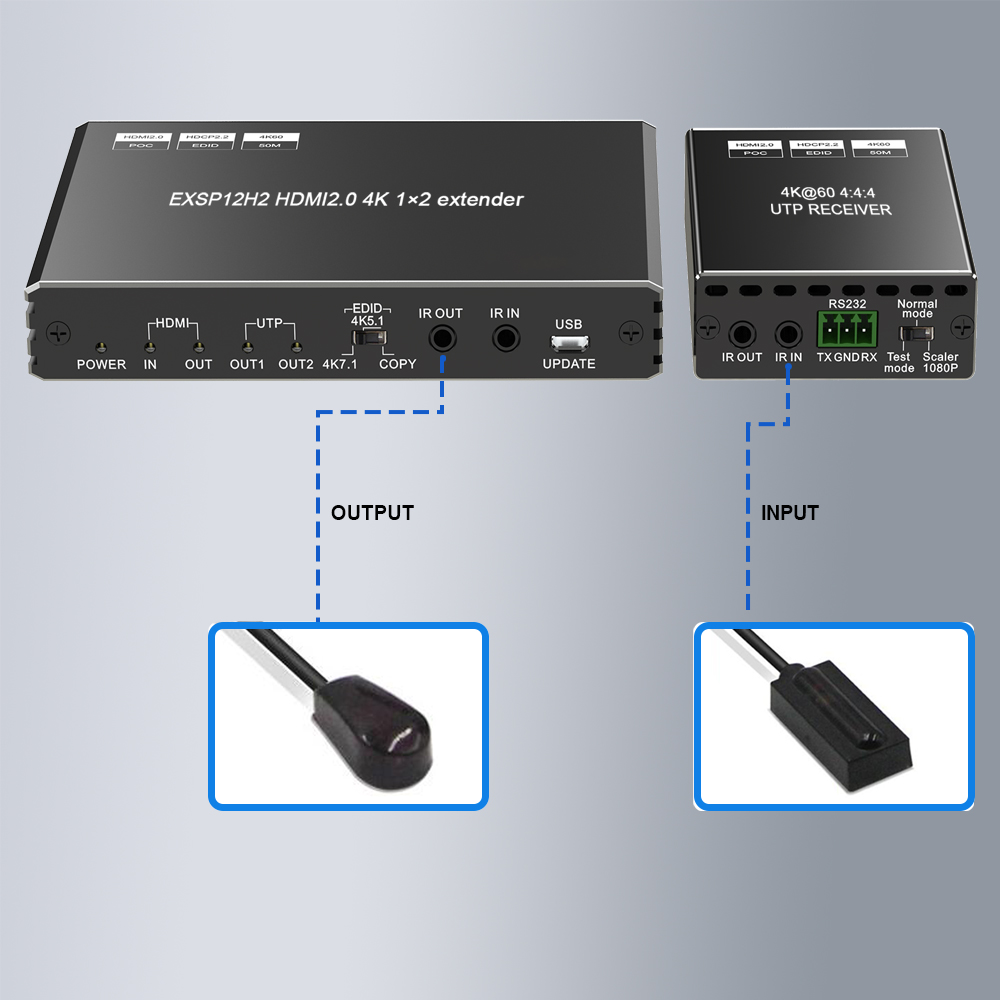

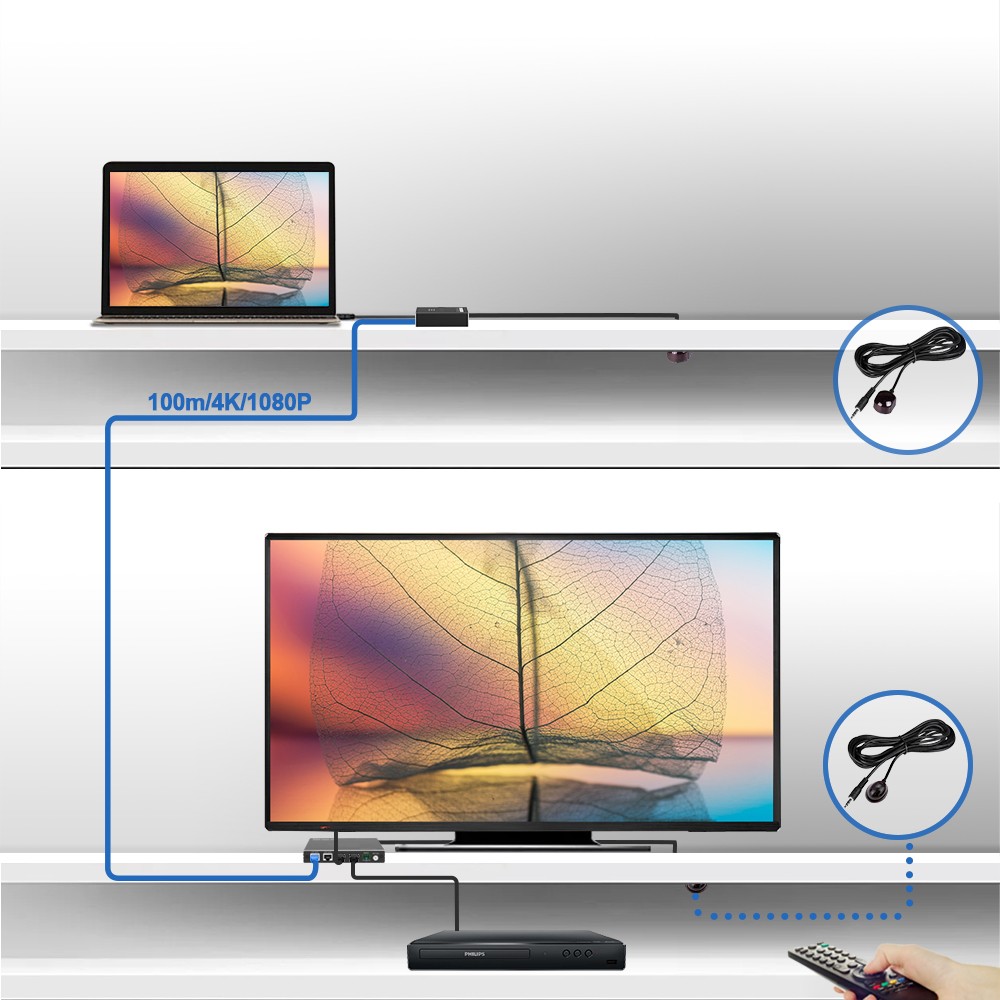

Supports PoE, one power adapter powers on TX and RX without the power supply,Supports bi-directional IR,eitherTV controls Blue-ray DVD, or DVD controls TV via IR remote; So easy to set up control system.
Supports bi-directional RS232, easy to connect to control system.Dolby Digital Audio format, HDMI ports support Dolby Digital7.1CH Audio; DTS-HD Master Audio/Dolby-AC3/DSD/LPCM.
Multiple easy installation, include metal mounting ear,HOOK&LOOP
Plug and Play; No driver required; Installs in minutes.
| HDMI version | Uncompressed HDMI 2.0 | HDCP version | HDCP2.2 |
| HDMI resolution | 4K*2K/1080p/1080i/720p/576p/576i/480p/480i | Support video format | 24bit/30bit,36bit deep color |
| Support audio format | Dolby true HD/DTS-HD/LPCM7.1/Dolby-AC3/DSD | Max bandwidth | 600MHz Max baud rate: 18Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) | Dimension (L x W x H) | TX:130*94*20(mm);RX:83*58*22(mm) |
