FEATURES

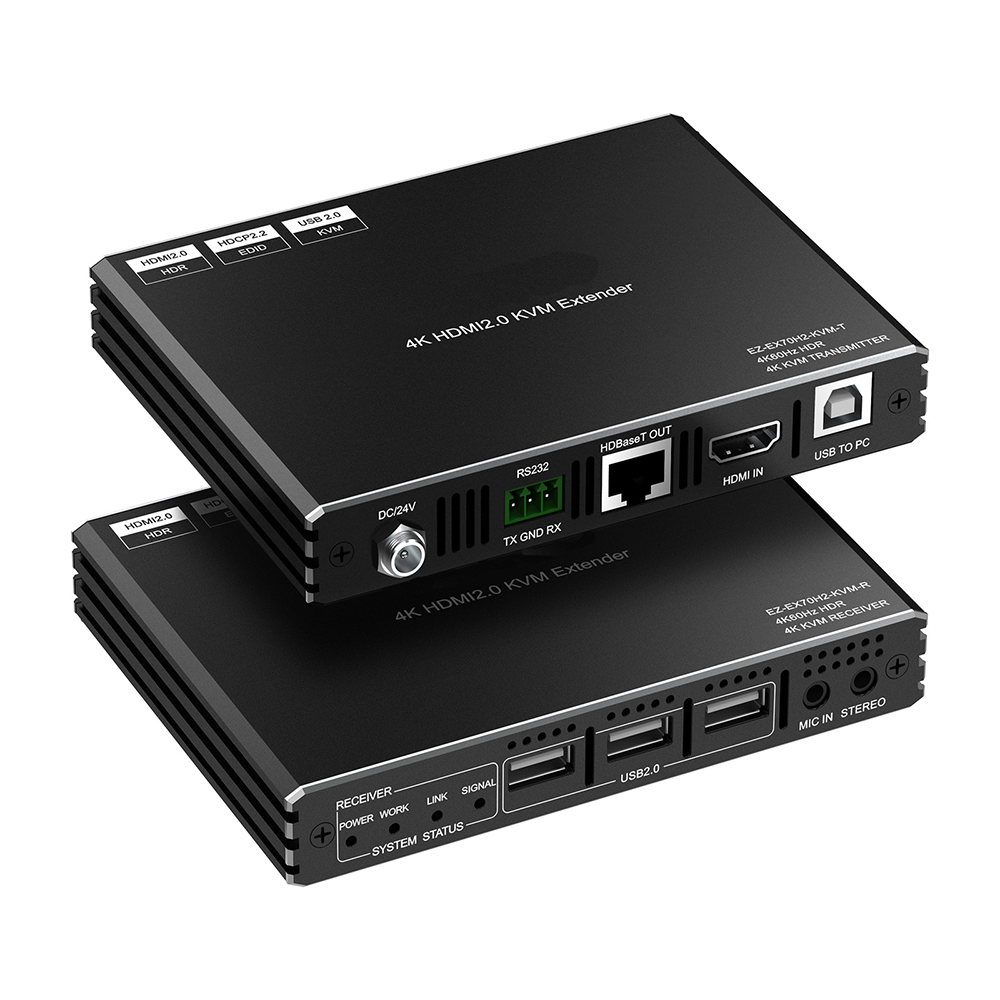

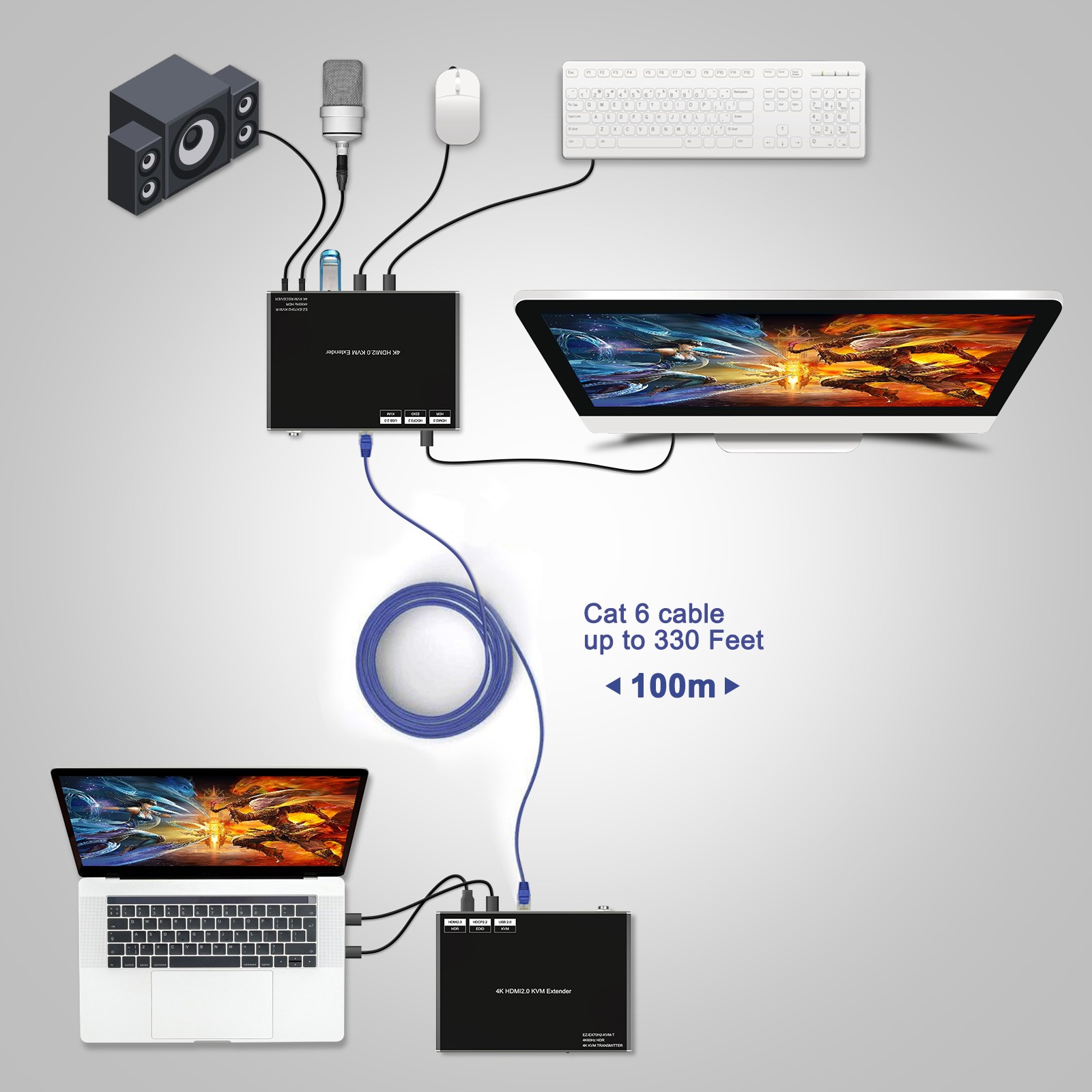

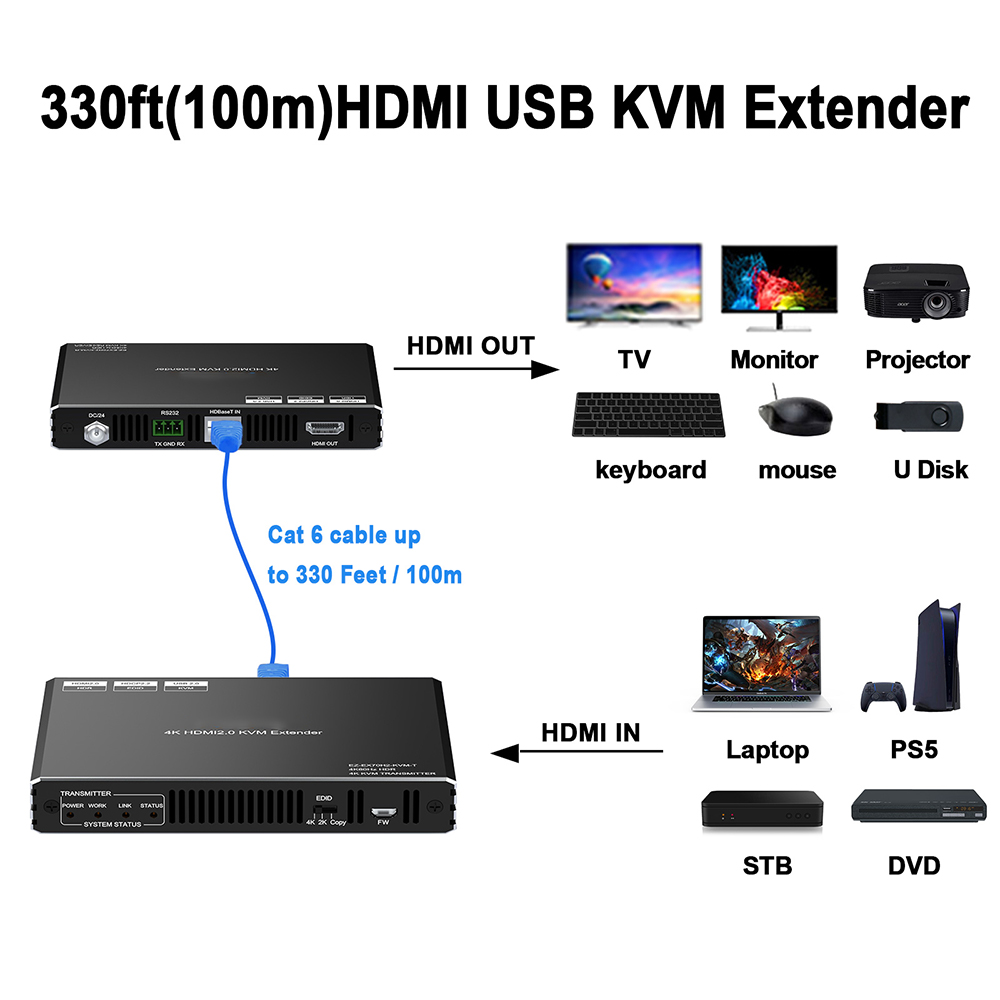

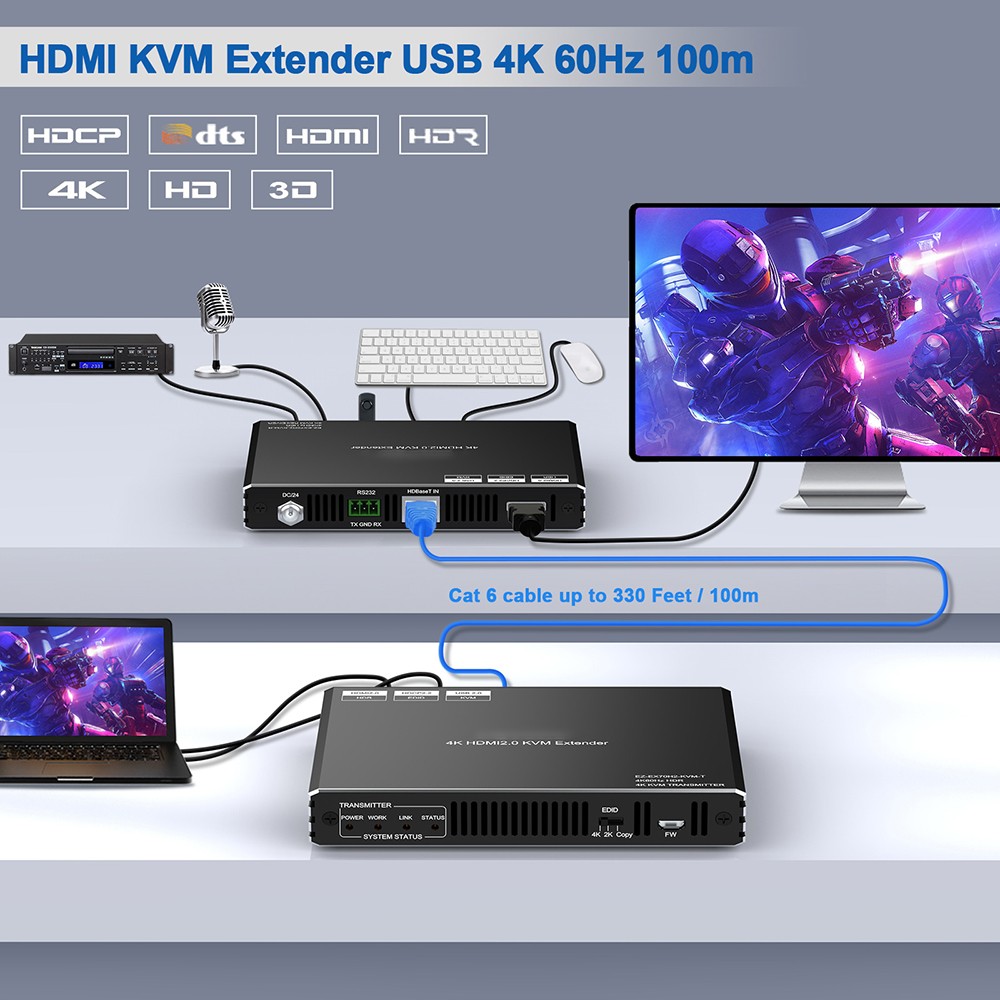

Extend UHD HDMl signal and USB2.0 signal to remoteHDMl display up to 300ft/100m.
Supports HDMI 2.0 4K@60Hz,HDR,HDCP 2.2.
Supports USB2.0,three USB2.0 ports on receiver.

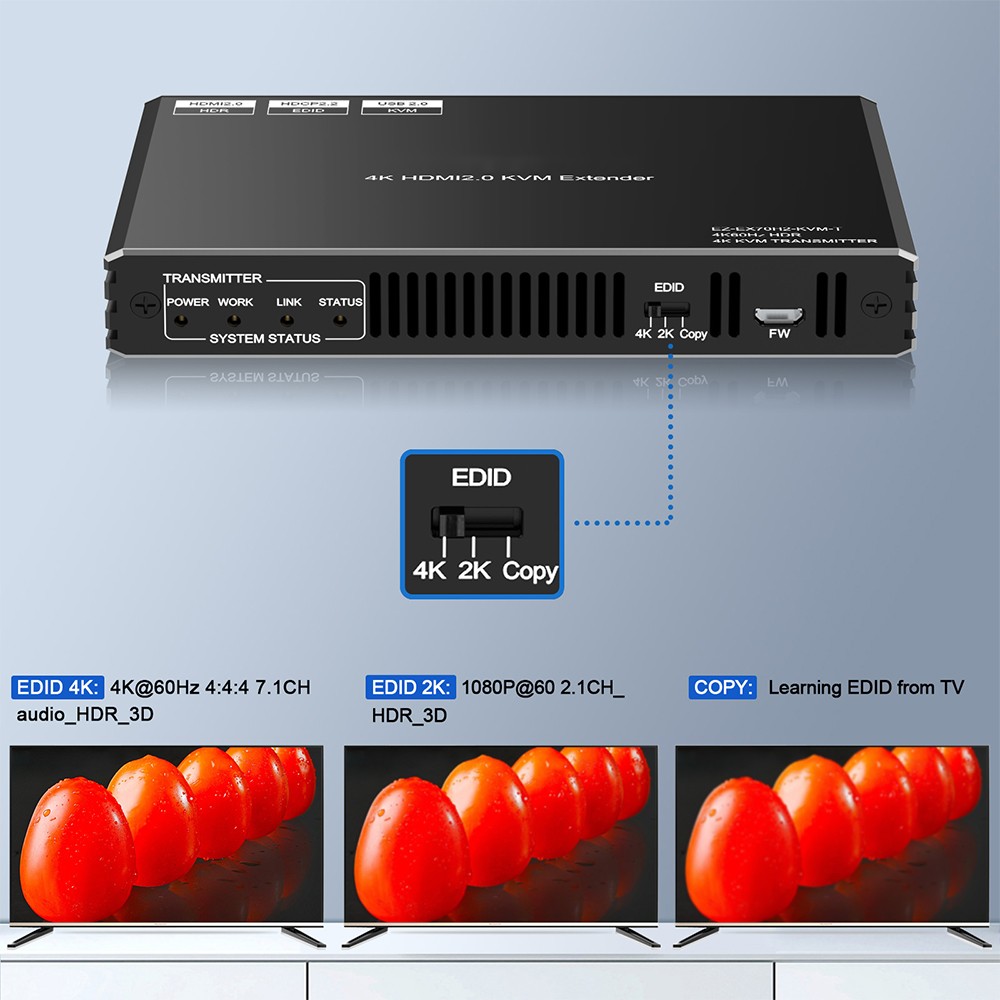

EDlD management. Easy to configure 4K/2K/pass through.
CEC pass through.
Supports HDMI 4K@60Hz, HDR up to 300ft100m.
Support 3D, Support deep color 30bit, 36bit.
Supports Blue-Ray 24150/60fs/HD-DVD/xVYCC
Supports HDMl signal re-timing, never lose quality.
Supports bi-directional PoE, one power adapter powers on TX and RX; Either TX powers on RX, or RX powers on TX
Supports bi-directional RS232, easy to connect to control system.
Dolby Digital Audio format, HDMl ports support Dolby Digital 7.1CH Audio; DTS-HD Master Audio/Dolby-AC3)DSD/LPCM,DTS:X,Atoms.
Multiple easy installation,include metal mounting ear,HOOK&LOOP
Plug and Play; Installs in minutes.
SPECIFICATIONS
| HDMI version | HDMI 2.0 | HDCP version | HDCP 2.2 |
| HDMI resolution | 4K*2K/1080p/1080i/720p/576p/576i/480p/480i | Video format | 4bit/30bit,36bit deep color |
| Audio format | Dolby true HD/DTS-HD/LPCM7.1/Dolby-AC3/DSDDTS:X,Atoms | Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Power adapter format | Input AC 100V-240V/50HZ,60HZ;Output: DC24V/0.7A | OperatingTemperature range | (-15 to +55℃℃) |
