FEATURES

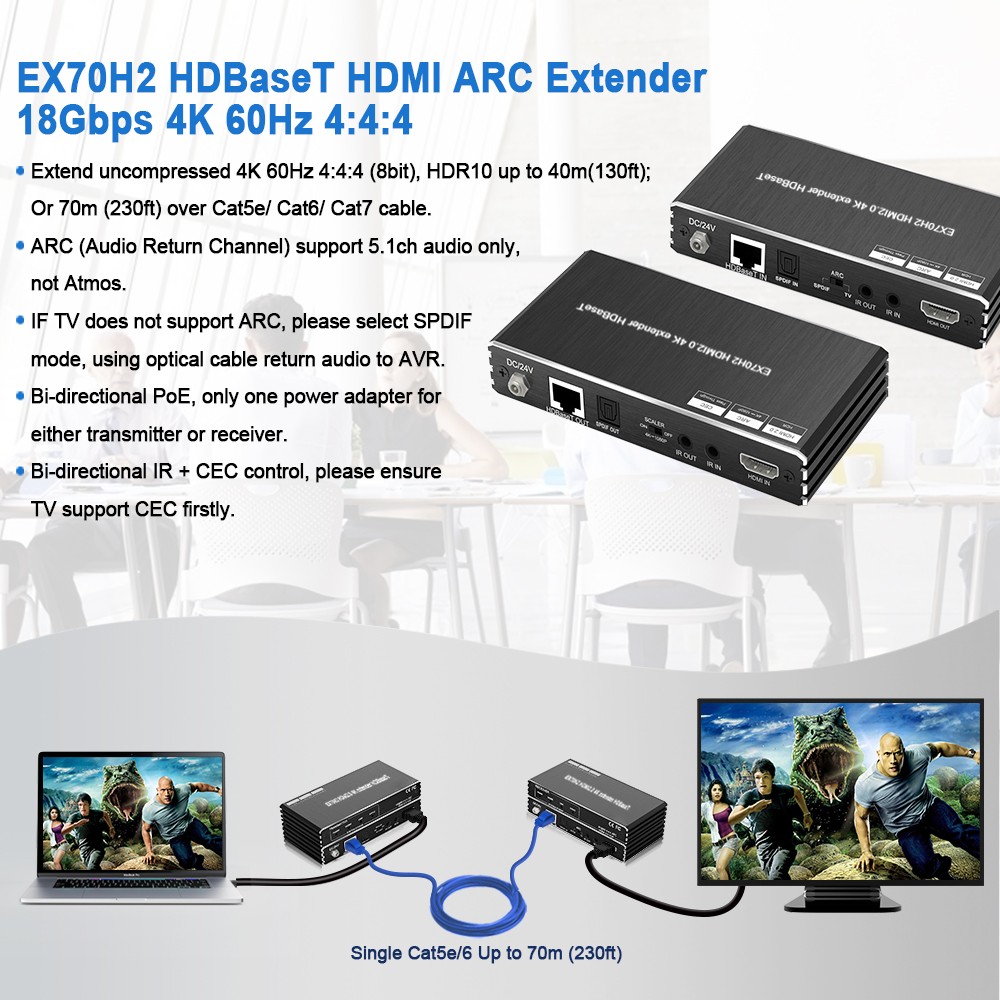

Extend UHD HDMl signal to remote HDMl display up to 230f70m.Supports HDM 2.0 4K@60Hz 4:4:4 8bit HDR,HDCP 2.2
HDMl output down scaler to 1080p, EDlD pass through
Supports HDMI 4K@60Hz 4:4:4 8bit HDR ARC up to 130ft40m,1080P@60Hzup to 230ft70m via Cat5e/6a/7 cable.
Support 3D, Support deep color 30bit, 36bit
Supports Blue-Ray 24150/60fs/HD-DVD/xvYCC
Supports HDMl signal re-timing, never lose quality
Supports HDMl input up to 10metres AWG26 HDMl 2.0 standard cable length,output up to 15metres AWG24 cable length.

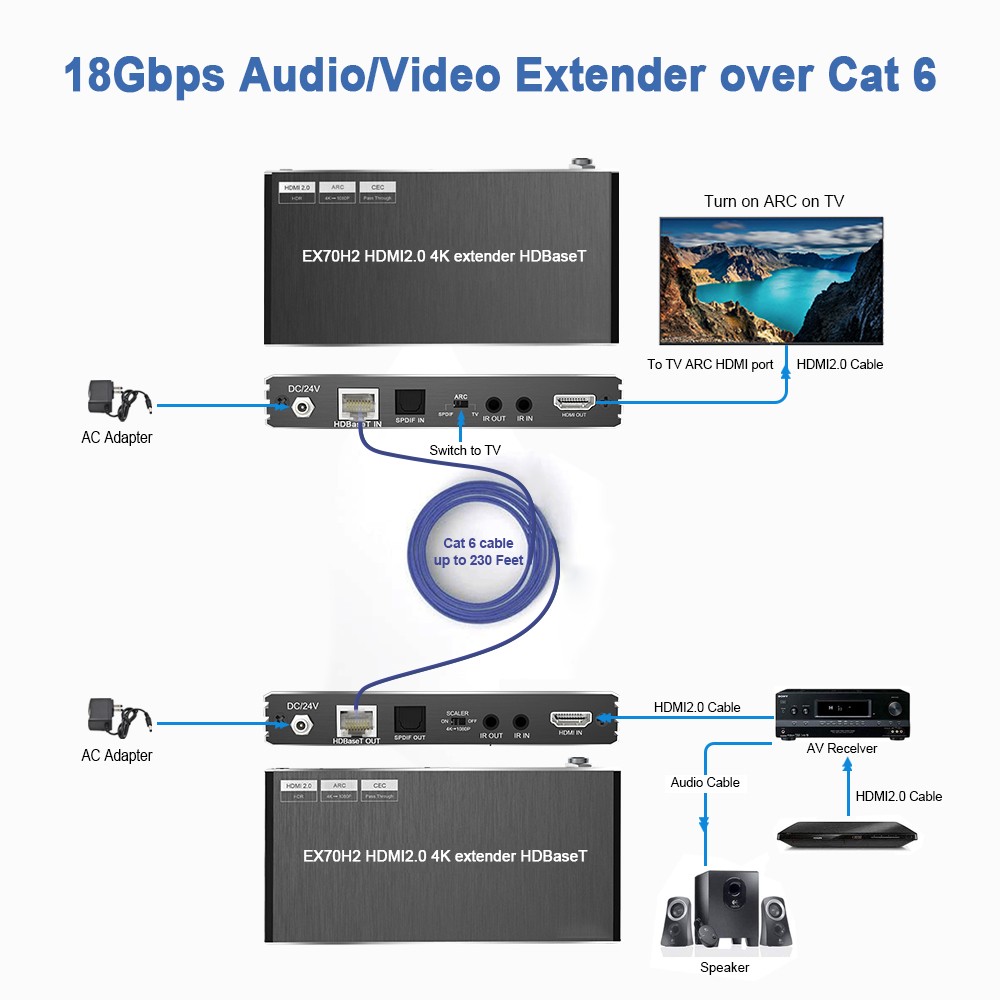

Supports ARC (Audio Return Channel). Please ensure your TV supports ARCSupports bi-directional PoE, one power adapter powers on TX and RX; Either TXpowers on RX, or RX powers on TX .
Supports bi-directional iR, either TV controls Blue-ray DVD, or DVD controls TVvia lR remote; So easy to set up control system.
Dolby Digital Audio format, HDMl ports support Dolby Digital 7.1CH Audio;
SPDIF Optical Audio supports Dolby DigitalDTS-HD Master Audio/Dolby-AC3/DSD/LPCMPCM 2.1/5.1CH
Multiple easy installation, include metal mounting ear, HOOK&LOOP
Plug and Play, No driver required; Installs in minutes
SPECIFICATIONS:
| HDMI version | Uncompressed HDMI 2.0 | HDCP version | HDCP2.2 |
| HDMI resolution | 4K*2K/1080p/1080i/720p/576p/576i/480p/480i | Support video format | 4bit/30bit,36bit deep color |
| Support audio format | Dolby true HD/DTS-HD/LPCM7.1/Dolby-AC3/DSD | Max bandwidth | 600MHz Max baud rate: 6Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) | Input/Output DDC signal | 5Volts p-p (TTL) |
| Input cable distance | ≤10m AWG26, HDMI 2.0 standard cable | Output cable distance | ≤15m AWG26, HDMI 2.0 standard cable |
| Max working current | 200mA | Power adapter format | Input AC 100V-240V/ 50HZ,60HZ; Output: DC24V/0.7A |
| Operating Temperature range | -15 to +55℃ | Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 120*65*18(mm) | Weight | 380g |
